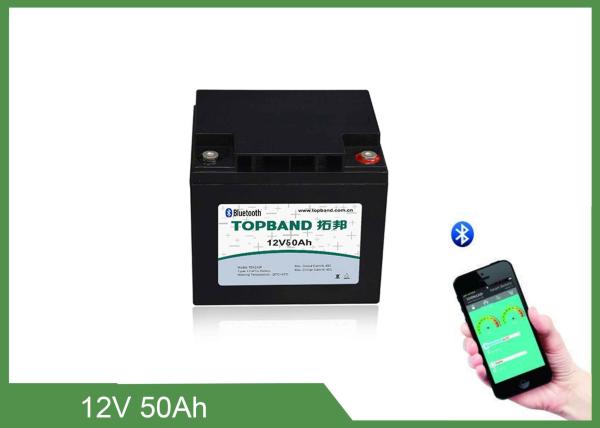

Solar Storage Deep Cycle Lifepo4 Rechargeable Battery 12V 50ah For RV / Camping Cars

Product Categories

Shenzhen Topband Battery Co., Ltd

Contact Now

Solar Storage Deep Cycle Lifepo4 Rechargeable Battery 12V 50ah For RV / Camping Cars

Name: Solar Storage Deep Cycle Lifepo4 Rechargeable Battery 12V 50ah For RV Camping Cars
Brand: Topband Lifepo4 battery
Price: 1 USD

Buy cheap Solar Storage Deep Cycle Lifepo4 Rechargeable Battery 12V 50ah For RV / Camping Cars product

Brand Name : Topband Lifepo4 battery

Model Number : TB-BL1250F

Certification : ISO9001, ISO14001

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 450Mwh/year

Delivery Time : 2~4weeks for samples; 4~6weeks for mass production

Packaging Details : standard export carton for Lithium Battery Solar Storage 12V 50Ah

Items : Lithium Battery Solar Storage 12V 50Ah

Type : Lifeo4 battery

Normal Capacity : 50Ah

Communication function : Bluetooth

Internal Resistance : ≤20mΩ

Weight : 6.5KG

Application : RV Caravans/Camping cars, Marine and boats

Nominal Voltage Range : 12V

Warranty : 2years

Size(LxWxH) : 196*165*174mm

housing : Black plastic hoursing(standard color)

Keywords : 12V 50Ah Lifepo4 battery, lithium ion battery, 12V 150ah lifepo4 battery

Protection : built-in BMS

Bluetooth APP : ios or Android version

Max charge current : 50A

Maximum discharge current : 50A withstand 30mins

Recommended charge current : <25A

Series connection : Not allowed

Contact Now

Lithium Battery Solar Storage Deep Cycle Lifepo4 12V 50ah Lithium Battery For RV/Camping cars

long life & deep cycle( over 2000cycles @ 100%DOD)
with built-in PCM/BMS protection
super quick charge/discharge performance
safe pressure valve design ( no explosion, no fire)
high energy density
low self-discharge( <3% per month,<15% per year)
charge at low temperature -20℃
easily replace lead acid battery
patent Bluetooth connection feature optional, enable IOS & Android app to monitor instant battery status(SOC, battery voltage, remain AH, charge current, temp., life cycle, error)

1. General Information

This specification defines the performance of rechargeable LiFePO4 battery pack TB-BL1250F- S110A manufactured by SHENZHEN TOPBAND BATTERY CO.,LTD, describes the type, performance, technical characteristics, warning and caution of the battery pack.

The battery pack support Bluetooth communication function.

Through Android and IOS APP, can read the battery status and information. Especially due to the Android system’s openness, different smart phone manufacturer will have their own different Bluetooth hardware version and customized feature Android systems. So the APP may not work well on some smart phones(with Android system) due to compatible issue. It is necessary for the customer to confirm whether the phone is compatible for the APP.

2. Specification

NO	Items	Description
Normal Specification
1	Nominal voltage	12.8V
2	Normal capacity	50Ah
3	Internal resistance	≤20mΩ
4	Series application	Not allowed
5	Communication function	Bluetooth
Standard Charge
6	Operation temperature range @charging	0~45℃
7	Normal charge voltage	14.6±0.1V
8	Recommended float charge voltage(for Standby use)	13.8±0.1V
9	Allowed MAX charge current	50A@Battery initial Temp 25±5℃
10	Recommended charge current	≤25A
Standard Discharge
11	Operation temperature range @discharging	-20~60℃
12	Output Voltage Range	10.0~14.6V
13	Allowed discharge current	50A withstand 30min @Battery initial Temp 25±5℃
14	Pulse discharge current	150A withstand 3s
15	Discharge Cut-off voltage	10.0V
Mechanical Characteristics
16	Dimension	Length 196±2mm
		Width 165±2mm
		Height 174±2mm
17	Weight	Approx. 6.5Kg

NO	Items		Description
Storage
18	Storage Temperature & Humidity Range	Short: within one month	-20~35℃, 45~75%RH
		Long term: above one month	-10~30℃, 45~75%RH
19	Self-discharge rate	Residual capacity	≤3% per month; ≤15% per year
		Reversible capacity	≤1.5%per month; ≤8% per year

3.Electrical Characteristics & Test Condition

Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%

NO	Items	Criterion		Condition
1	Internal Impedance	≤20mΩ		Test the internal resistance of 50% SOC battery pack with 1 kHz AC internal resistance test instrument.
2	Capacity	≥49Ah		Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
3	Cycle life (DOD%100)	≥2000cycle		Discharge with the current of 0.5C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
4	Discharge Temperature Characteristics	-20℃	≥70%	At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
		0℃	≥80%
		25℃	100%
		55℃	≥95%
5	Charge Retention ability	remain capacity≥90%		Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.

4. Circuit Protection

The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

Test item	Content	Criterion
Over charge	Over-charge protection for each cell	3.80±0.03V
	Over-charge release for each cell	3.60±0.05V
	Over-charge release method	Under the release voltage
Over discharge	Over-discharge protection for each cell	2.50±0.05V
	Over-discharge release for each cell	3.00±0.05V
	Over-discharge release method	Over the release voltage
Over current	Discharge over current protection	150~200A
	Protection delay time	50~200ms
	Over current release method	Release after 30s.
Over Temperature	Battery CHG/DSG over temperature	Protection @65±5℃
Over Temperature	Battery CHG/DSG over temperature	Release @60±5℃
Over Temperature	Battery CHG lower temperature	Protection @-10±5℃
Over Temperature	Battery CHG lower temperature	Release @0±5℃

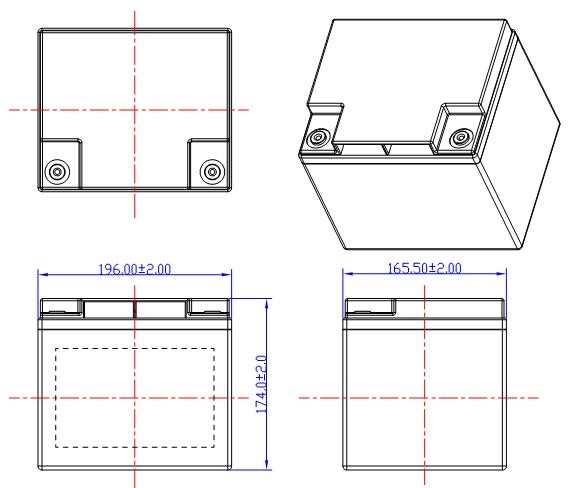

5. Dimensional Drawing

If above battery is not OK for you, please do not hesitate to send you inquiry right now.

Other products: Lifepo4 cells, WiFi LifePO4 Battery, Energy Storagy System, etc.

Tag: Llithium iron phosphate battery pack, Lifepo4 battery
